Naish 2024 Ultra Jet Foil – Complete Foil

Naish 2024 Ultra Jet Foil – Complete Foil

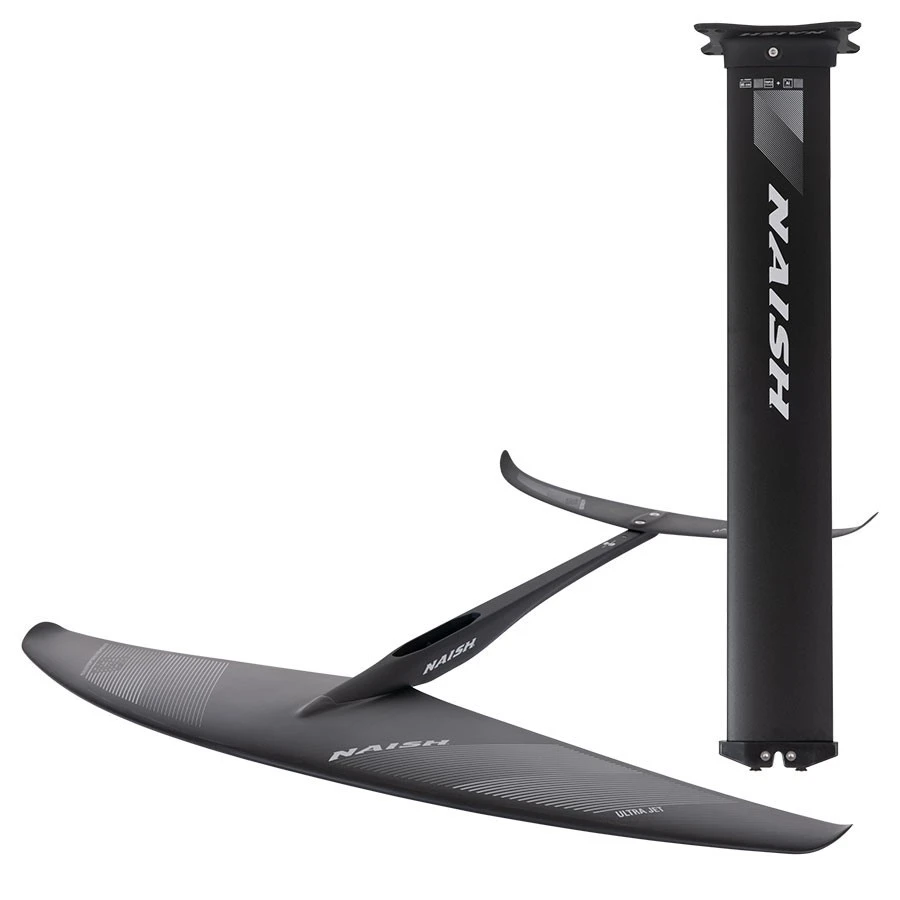

Build the complete foil that best suits your needs by choosing from one of the Naish Ultra Jet Wing/Fuselage packages and one of the 3 Naish mast options.

The Ultra Jet range is the next level in all-around foiling performance. Utilizing the latest in carbon construction technology, it provides a seamless connection to many popular Naish fuselages and offers a dual expansion core for an agile yet stable ride. The lightweight and robust build combines 100% prepreg 3K carbon with both UD carbon and glass core layup for enhanced strength and improved lift without compromising speed or pumping power. The Ultra Jet foil wing has been designed to deliver gradual lift, both fore and aft, as well as horizontal stability so riders of all levels can enjoy a more accessible yet still thrilling ride. With increased speed and unrivaled maneuverability, this high-performance foil will suit any conditions or skill level for wingfoiling, kitefoiling, windsurfing or SUP foiling. The thinner profile also allows for faster acceleration while still providing excellent control when turning due to its rounded wing tips, giving you a secure experience regardless of your riding style.

Key Features:

• 100% PREPREG 3K CARBON OUTER LAYER SATIN FINISH – Durable and lightweight construction
• ROUNDED WING TIPS – Provide excellent control when turning
• THINNER PROFILE – Delivers gradual lift and provides horizontal stability
• USER FRIENDLY – Easy to ride, great all-around foiling performance
• ROBUST FOIL SECTION – Delivers gradual lift and provides horizontal stability
• DUAL EXPANSION CORE CONSTRUCTION – Molded lightweight layup utilizing UD Carbon and Glass Laminate
• SCARF JOINT CONNECTION TO FUSELAGE – Proven and compatible with earlier Naish fuselage models

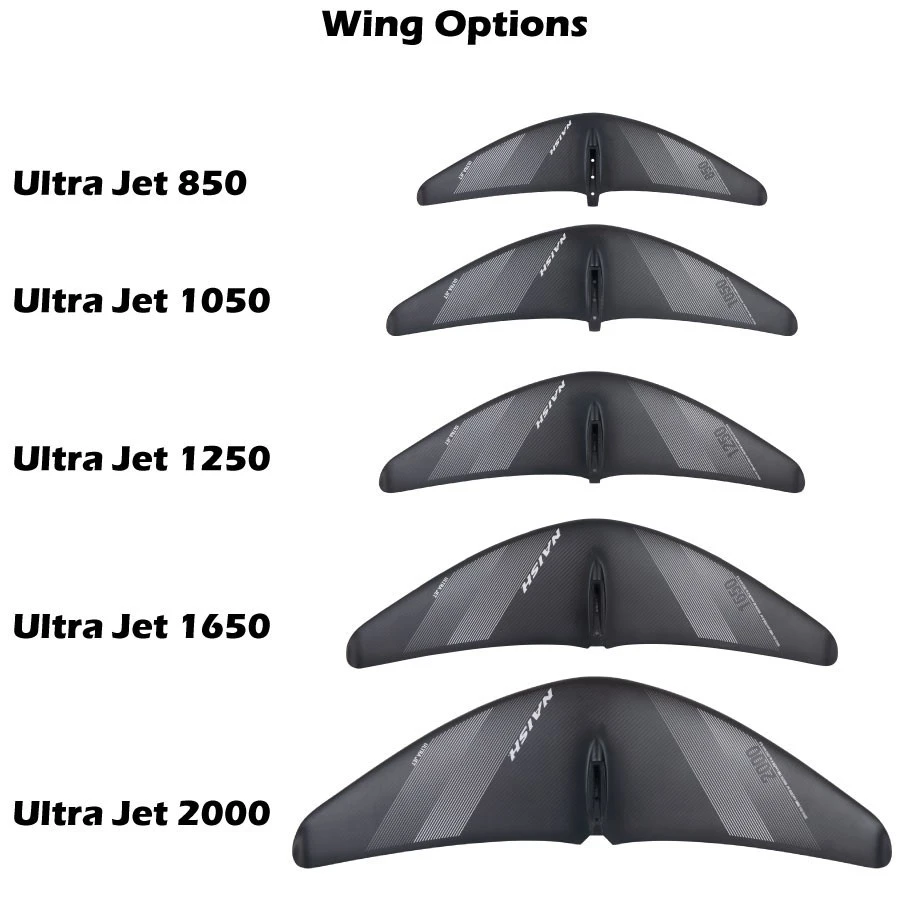

Ultra Jet Wing Sizes:

• Ultra Jet 850
• Ultra Jet 1050
• Ultra Jet 1250
• Ultra Jet 1650
• Ultra Jet 2000

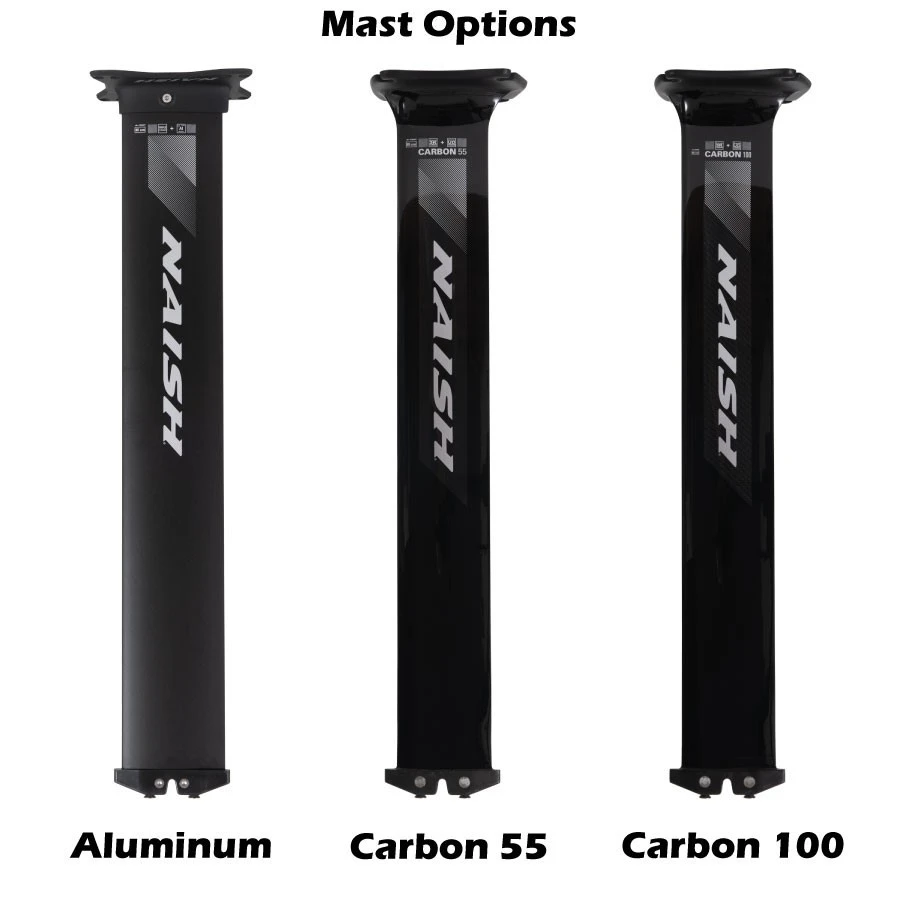

Mast Options:

Aluminum

• The Naish alloy mast has been precision-engineered to feature an updated version of the 6061 aircraft-grade aluminum extrusion that is significantly more robust than its predecessor, with only a slight increase in weight achieved through a result of a new sectional structure that places thicker walls around key buckling points while still holding its original exterior measurements and streamlined profile. Additionally, the mast has been further reinforced with a bonded and screwed board mount composed of two M8 screws and hex bolt for maximum durability. Fastening this mast to the fuselage is done by means of two M8 screws and a molded fuselage connector which also helps protect against corrosion. Included with the setup is a Torx T30 driver which can be used to securely tighten all screw connections.

Aluminum Mast Features:

• Foam core, aluminum mast extrusion
• Tripple bridge stringer
• Screwed and glued mast to board connection
• Screwed and glued mast to fuselage connection

Carbon 55

• The Naish C55 monocoque composite mast is an innovative piece of engineering that provides a state-of-the-art combination of affordability and performance. Its advanced construction includes a dual expanding foam core, which helps to reduce the weight significantly without sacrificing any strength or stability. This smaller profile is shared with the C100 mast, allowing for reduced drag during use. The installation of two 12 mm stainless steel inserts into the mast structure, combined with our specially designed molded fuselage connector, has proven to be an effective solution in eliminating corrosion issues and providing a long-term corrosion barrier. The combination of this precision engineering allows the user to enjoy superior performance at an excellent cost-benefit ratio that won?t compromise long-term durability.

Carbon 55 Mast Features:

• High temperature/high pressure prepreg construction
• Inner foam core for optimized weight
• UD inner layer construction combined with 3K outer layer
• Gloss finish for easy cleaning and keeping an optimized surface without sanding

Carbon 100

• The new Naish C100 monocoque carbon mast is the pinnacle of cutting-edge engineering and design, offering unparalleled performance benefits. Crafted with a combination of 3K and UD carbon fibers, it provides superior bending and torsional rigidity while achieving a ?direct drive? feel for maximum control. Additionally, its dual expanding foam core allows for an exceptionally light weight build that enhances speed and control while preventing corrosion thanks to the integration of (2) 12 mm stainless steel inserts laminated into the mast structure as well as a molded fuselage connector which serves as a protective barrier against corrosion.

Carbon 100 Mast Features:

• High temperature/high pressure prepreg construction
• Inner foam core for optimized weight
• UD inner layer construction combined with 3K outer layer
• Gloss finish for easy cleaning and keeping an optimized surface without sanding
